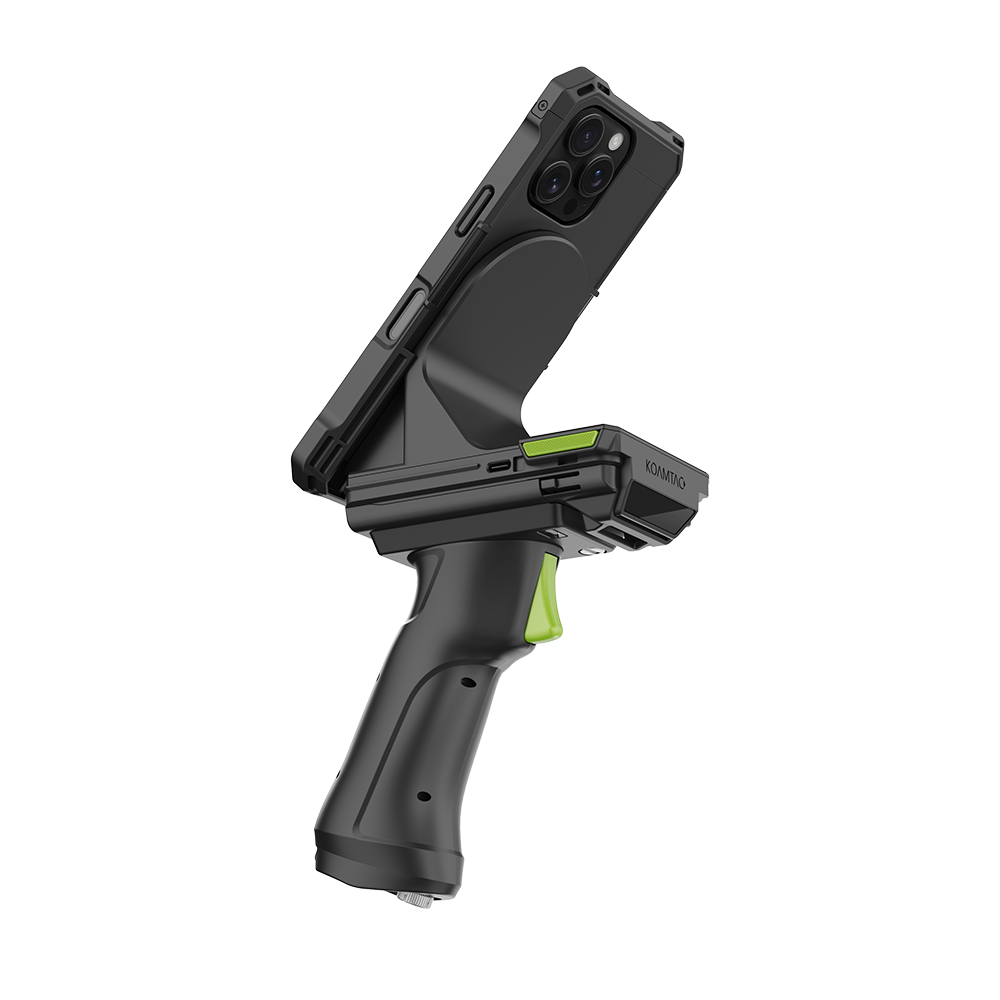

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

SKU. 504910 EAN. 8800322687994

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

$698

$698

Sale Coming Soon

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Angled Magnetic Universal Adaptor (AMUA) for KDC1000/1100 SmartSled with Trigger Handle Companion & 6000mAh Battery

Snap On, Scan All Day on a Single Charge

Key Features

A magnetic mounting solution that includes the KDC1000 or KDC1100 SmartSled and Trigger Handle (Pistol Grip) Companion with 6000mAh Battery
Designed for use with magnetically compatible smartphone cases or direct attachment to supported smartphones
No KOAMTAC custom case required
Attaches magnetically—no drilling or screwing into the case for semi-permanent modification
Enables fast attachment and removal of SmartSled scanners for flexible deployment and shared-device use
Available in two form factors to support different configurations:
- Flat MUA (FMAU) for handheld SmartSled operation
- Angled MUA (AMUA) for improved ergonomics when used with 1.0W UHF Reader Companion/Pistol Grip
Maintains a clear view of the smartphone’s built-in camera for software-based barcode scanning
Supports fast and simple pairing:
- BLE pairing via a pairing barcode printed directly on the adaptor
- NFC tap-to-pair support
Compatible with KOAMTAC 1-slot and 5-slot KDC1200 charging cradles
Allows devices to be docked and charged without removing the adaptor
KDC SmartSled scanner, smartphone, and charging cradles sold separately.

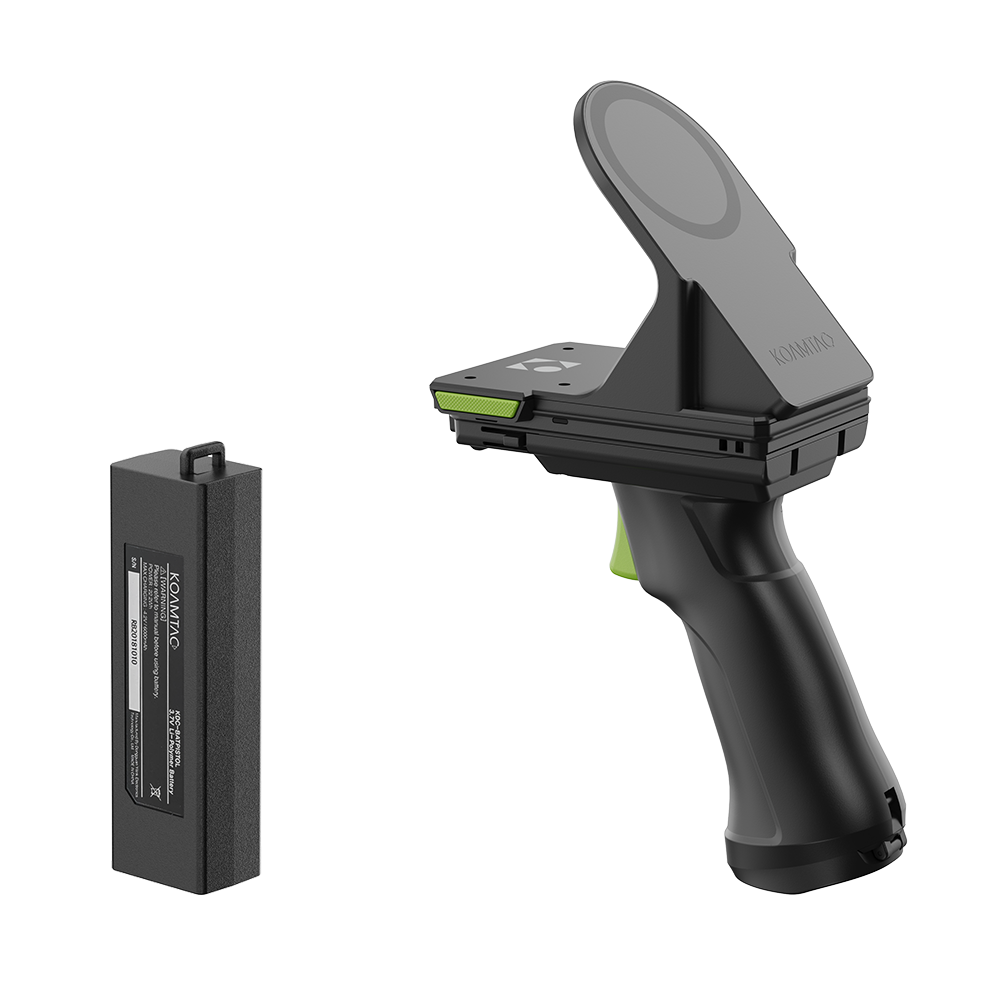

In the Box

Angled Magnetic Universal Adapter (AMUA) for KDC1000/1100 SmartSled
Trigger Handle Companion (Pistol Grip)
6,000mAh Trigger Handle (Pistol Grip) Battery

View full details

Features

Symbologies Supported

1D: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, TCL39, Telepen, TriOptic, UPC-A, UPC-E0, UPC-E1
2D: Aztec Code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code
Postal Codes: POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post
OCR/MRZ: OCR-A, OCR-B, MICR E13-B, SEMI

Flexible Scan Range

ST: 1.9–29.1” (49–740 mm)
PRO: 1.7–31.5” (44–800 mm)
MR: 3.3–59.0” (85–1500 mm)
ER: 3.4–112.1” (88–2848 mm)
Optional flat-angled scan engine available upon request.

Rugged & Reliable

IP Rating: IP65 (dust-tight & water-resistant), IP54 with 1.0W UHF Reader
Drop Tested: Survives drops from 5 ft (1.5 m)
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Humidity: 5% to 95% non-condensing
Physical Size: 2.95" x 4.28" x 0.81" (75 mm x 108.6 mm x 20.7 mm)

Integration & SDK

Keyboard wedging and synchronization
Transfer to applications, add-on prefixes/suffixes, barcode option selection
SDK support for Android, Xamarin, Cordova, React Native, Flutter, and Web
Dedicated technical support ensures reliable data collection

Compliance & Safety

Compliant with R&TTE, RED, FCC, KC, J-MIC, VCCI, SRRC, RoHS
Laser safe: IEC60825-1:2007 & IEC60825-1:2014, Class II

Warranty & Support

1-year limited warranty with dedicated customer support and RMA services
