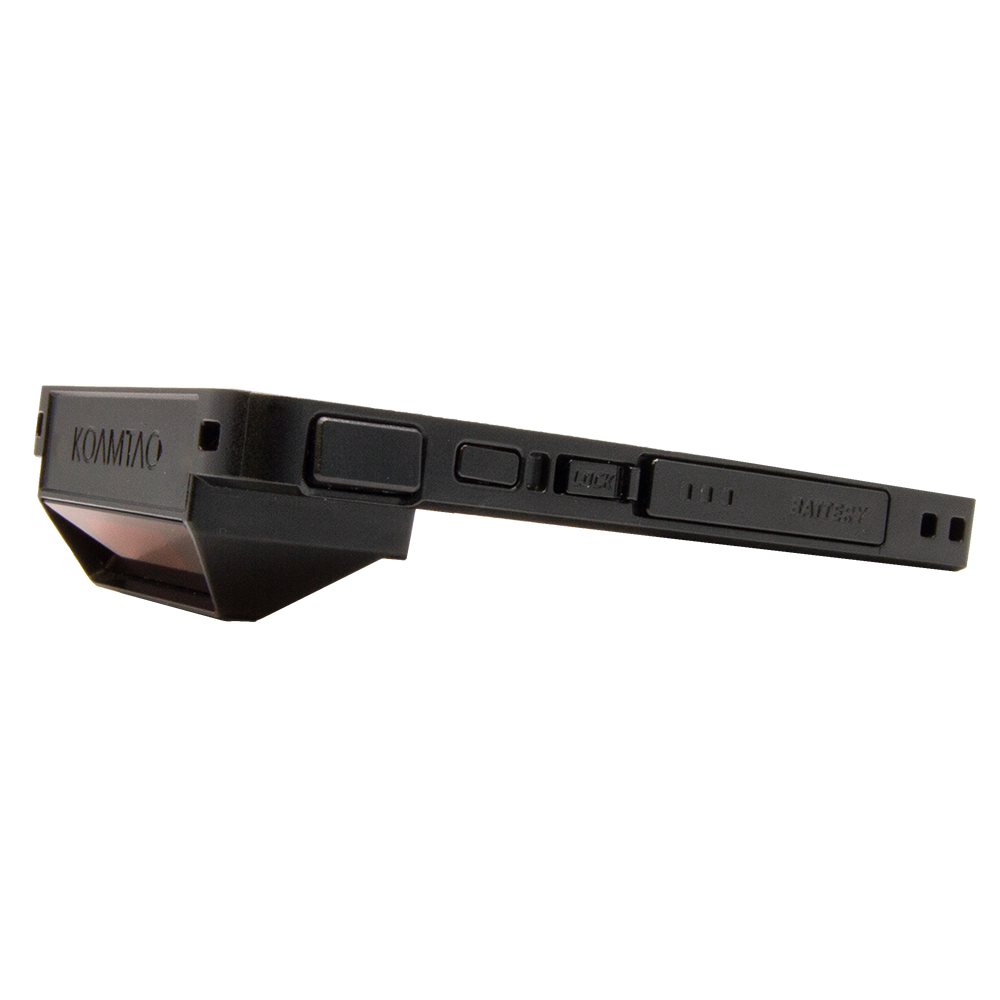

KDC485S 1D Laser Bluetooth Barcode Sled Scanner

SKU. 344600 EAN. 8809697773875

KDC485S 1D Laser Bluetooth Barcode Sled Scanner

$503
$503
Sale Coming Soon
KDC485S 1D Laser Bluetooth Barcode Sled Scanner
KDC485S 1D Laser Bluetooth Barcode Sled Scanner

Bluetooth Low Energy 1D Laser Barcode Sled Scanner for Mobile Data Collection

Key Features
  • 1D laser barcode sled scanner
  • Designed for mobile Auto-Identification applications with smartphones and tablets
  • Angled scan engine for improved ergonomics
  • Bluetooth® Low Energy (BLE 5.0) connectivity
  • IP65-rated and 5 ft (1.5 m) drop specification
  • Supports all major 1D & 2D barcodes
  • 8MB internal flash memory for on-device data storage
  • Supports simultaneous charging of scanner and smartphone
  • Includes FREE KTSync® keyboard wedging software and FREE SDK
In the Box
  • KD485S Barcode Sled Scanner

* SmartSled case sold separately.

View full details

Features

Maximum Compatibility
Maximum Compatibility
  • Designed for use with various smartphones and tablets
  • User-friendly sled design allows host device upgrades while retaining the KDC485 main system
  • Compatible with integrated SmartSled charging cases
Symbologies Supported
Symbologies Supported
  • Supports all major 1D barcodes
Flexible Scan Range
Flexible Scan Range
  • Angled scanner design improves aiming comfort and reduces wrist strain
  • Suitable for retail, logistics, and warehouse workflows
Rugged & Reliable
Rugged & Reliable
  • Ingress Protection Rating : IP65
  • Drop Spec : 5′ (1.5 m)
  • Operating : -4˚F to 122˚F (-20˚C to 50˚C)
  • Storage : -4˚F to 140˚F (-20˚C to 60˚C)
  • Humidity : 5% to 95% (non-condensing)
Battery & Charging
Battery & Charging
  • Battery : Lithium-ion (3.7V DC, 1100 mAh)
  • Charging : USB, Charging Cradle
Integration & SDK
Integration & SDK
  • Bluetooth® Low Energy 5.0
  • Supported Bluetooth profiles: HID (Android / iOS / Windows), SPP (Optional Secure Mode)
  • Includes KTSync® keyboard wedging software
  • Includes FREE SDK
  • SDK support for Android, BlackBerry, iOS (iPhone, iPod touch, iPad), and Windows
Compliance & Safety
Compliance & Safety
  • R&TTE, RED, FCC, KC, J-MIC, VCCI, SRRC, RoHS Compliant
  • Laser Safety : IEC60825/CDRH Class II
  • LED Safety : IEC62471:2006
Warranty & Support
Warranty & Support
  • 1-year limited warranty with dedicated customer support and RMA services
