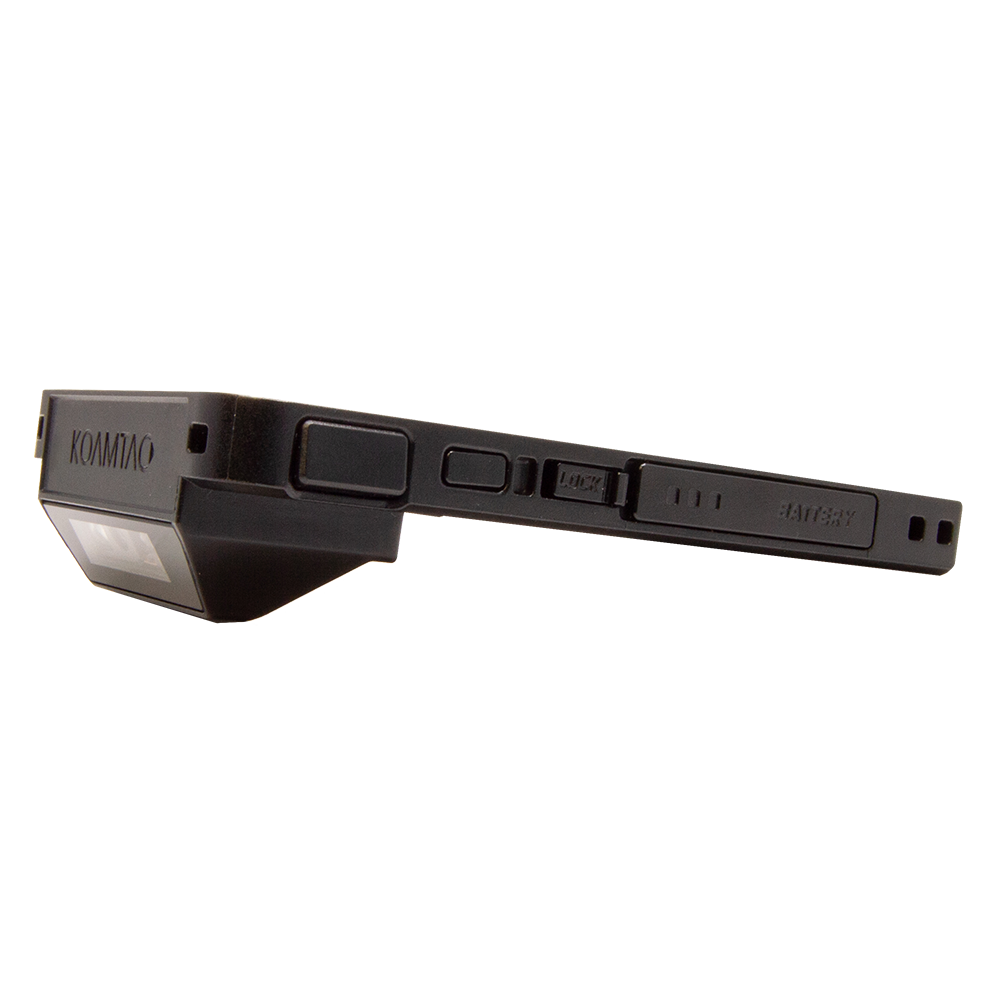

KDC485ER Extended Range Angled 2D Barcode SmartSled

SKU. 344840 EAN. 8809697775213

KDC485ER Extended Range Angled 2D Barcode SmartSled

$894

$894

Sale Coming Soon

Title

KDC485ER Extended Range Angled 2D Barcode SmartSled

KDC485ER Extended Range Angled 2D Barcode SmartSled

Extended Range Bluetooth Low Energy 2D Imager Barcode Sled Scanner for Mobile Data Collection

Key Features

Extended-range 2D imager barcode sled scanner
Designed for mobile Auto-Identification applications with smartphones and tablets
Angled scan engine for improved ergonomics
Bluetooth® Low Energy (BLE 5.0) connectivity
IP65-rated and 5 ft (1.5 m) drop specification
Supports all major 1D & 2D barcodes
8MB internal flash memory for on-device data storage
Supports simultaneous charging of scanner and smartphone
Includes FREE KTSync® keyboard wedging software and FREE SDK

Scan Range

Extended Range (ER): 3.4-104.1″ (88-2848 mm)

In the Box

KD485ER Barcode Sled Scanner

* SmartSled case sold separately.

View full details

Features

Maximum Compatibility

Designed for use with various smartphones and tablets
User-friendly sled design allows host device upgrades while retaining the KDC485 main system
Compatible with integrated SmartSled charging cases

Symbologies Supported

Supports all major 1D barcodes
Supports all major 2D barcodes

Flexible Scan Range

Extended Range (ER): 3.4-104.1″ (88-2848 mm)
Angled scanner design improves aiming comfort and reduces wrist strain
Suitable for demanding warehouse and logistics workflows

Rugged & Reliable

Ingress Protection Rating : IP65
Drop Spec : 5′ (1.5 m)
Operating : -4˚F to 122˚F (-20˚C to 50˚C)
Storage : -4˚F to 140˚F (-20˚C to 60˚C)
Humidity : 5% to 95% (non-condensing)

Battery & Charging

Battery : Lithium-ion (3.7V DC, 1100 mAh)
Charging : USB, Charging Cradle

Integration & SDK

Bluetooth® Low Energy 5.0
Supported Bluetooth profiles: HID (Android / iOS / Windows), SPP (Optional Secure Mode)
Includes KTSync® keyboard wedging software
Includes FREE SDK
SDK support for Android, BlackBerry, iOS (iPhone, iPod touch, iPad), and Windows

Compliance & Safety

R&TTE, RED, FCC, KC, J-MIC, VCCI, SRRC, RoHS Compliant
Laser Safety : IEC60825/CDRH Class II
LED Safety : IEC62471:2006

Warranty & Support

1-year limited warranty with dedicated customer support and RMA services
