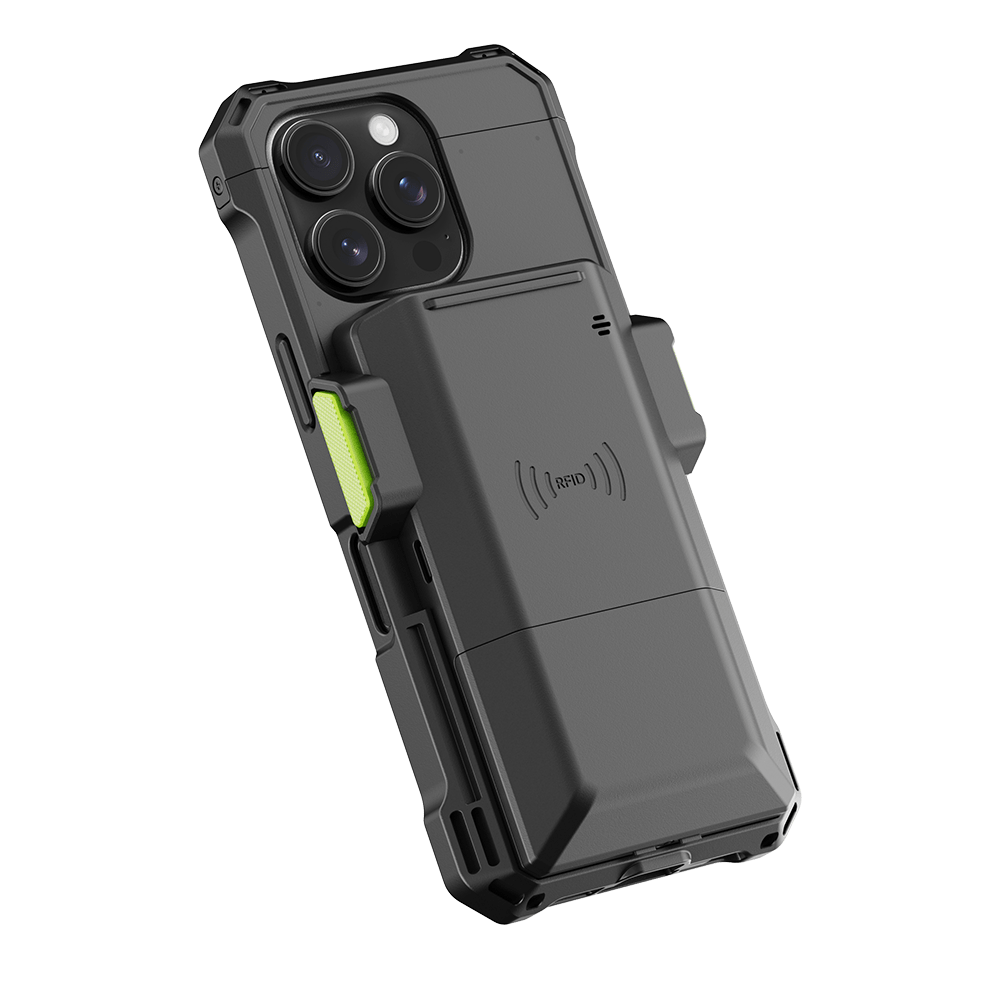

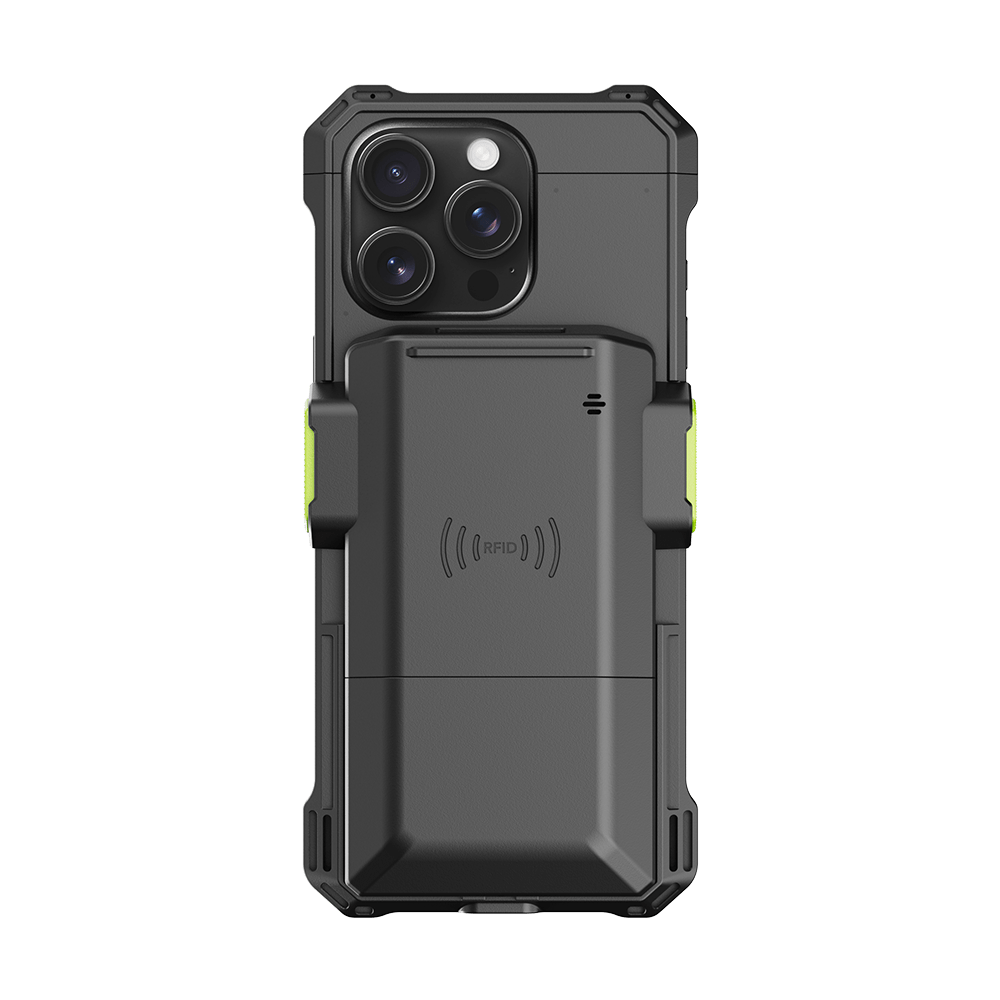

KDC1200 SmartSled for iPhone 16 Plus

SKU. 521756 EAN. 8800292724682

KDC1200 SmartSled for iPhone 16 Plus

$616

$616

Sale Coming Soon

KDC1200 SmartSled for iPhone 16 Plus

KDC1200 SmartSled for iPhone 16 Plus

KDC1200 SmartSled for iPhone 16 Plus

KDC1200 SmartSled for iPhone 16 Plus

Precision Scanning and Integrated UHF RFID in a Rugged, Slim SmartSled Design

Key Features

Size (KDC1200 only): 3.19 × 4.67 × 0.64″ (81 × 118.5 × 16.2 mm)
Size (with Galaxy A35 Case): 3.40 × 7.26 × 1.16″ (86.4 × 184.4 × 29.5 mm)
Integrated 0.5W UHF RFID reader (EPC Class1 Gen2, EPC Gen2 V2)
Optional extended NFC antenna to enhance the phone’s NFC signal
Connectivity via USB OTG (Android/iOS) and Bluetooth® Low Energy 5.0 (HID/SPP)
USB Power Delivery v3.0 (USB-C, Max 20W)
Ingress Protection Rating: IP54
Drop specification: 5 ft (1.5 m)
Replaceable 3.7V DC, 1,100mAh Lithium-Ion battery
Charging via USB-C or charging cradle (pogo pins)
1-slot and 5-slot charging cradles with 15W fast charging
Pogo pins reduce port wear; spacer system supports updated devices and minimizes waste

Scan Range by Model

ST: 1.9–29.1” (49–740 mm)
PRO: 1.7–31.5” (44–800 mm)
MR: 3.3–59.0” (85–1500 mm)
ER: 3.4–112.1” (88–2848 mm)

In the Box

SmartSled Custom Case
SmartSled Scanner

* Smartphone sold separately.

View full details

Features

Maximum Compatibility

Supports Apple iPhone 13–16 series
Supports Samsung Galaxy XCover7 and Galaxy A35
Two-piece Custom Case system with stability screw for secure device fit
Easy case swap when upgrading host devices while retaining the SmartSled
OS support: Android, iOS, macOS, Windows

Symbologies Supported

1D: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, TCL39, Telepen, Tri-Optic, UPC-A, UPC-E0, UPC-E1
2D: Aztec Code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code
Postal Codes: POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post
OCR/MRZ: OCR-A, OCR-B, OCR US Currency, OCR MICR, OCR Semi, OCR ISBN, OCR Passport

Flexible Scan Range

ST: 1.9–29.1” (49–740 mm)
PRO: 1.7–31.5” (44–800 mm)
MR: 3.3–59.0” (85–1500 mm)
ER: 3.4–112.1” (88–2848 mm)

Rugged & Reliable

Ingress Protection Rating: IP54
Drop specification: 5 ft (1.5 m)
Operating temperature: -4°F to 122°F (-20°C to 50°C)
Storage temperature: -4°F to 140°F (-20°C to 60°C)
Humidity tolerance: 5% to 95% (non-condensing)
Slim, rugged SmartSled design built for enterprise environments

Battery & Charging

Replaceable 3.7V DC, 1,100mAh Lithium-Ion battery
Charging via USB-C or charging cradle with pogo pins
15W fast charging supported
Cradles charge both the SmartSled and the battery simultaneously
Spacer system ensures compatibility with updated devices and minimizes waste

Companion Modules

Integrated 0.5W UHF RFID reader with up to 5 ft (1.5 m) nominal read range (tag and environment dependent)
RFID frequency: EU
Output power range: +18 to +27 dBm
Read rate: up to 100 tags per second
RFID storage capacity: up to 409,600 tags (EPC data)
Optional extended NFC antenna to enhance phone NFC performance

Integration & SDK

USB OTG interface for Android and iOS devices
Bluetooth® Low Energy 5.0 with HID (Android/iOS/Windows) and SPP mode
USB Power Delivery v3.0 (USB-C, Max 20W)
Keyboard wedge and data synchronization support
Prefix and suffix insertion and barcode option selection
SDK support for Android, iOS, Xamarin, Cordova, React Native, Flutter, and Web
Memory: 1MB program flash, 5MB user data, 256KB RAM
Stores up to 262,000 barcodes (EAN-13)

Compliance & Safety

RED compliant
RoHS compliant

Warranty & Support

1-year limited warranty with dedicated customer support and RMA services
