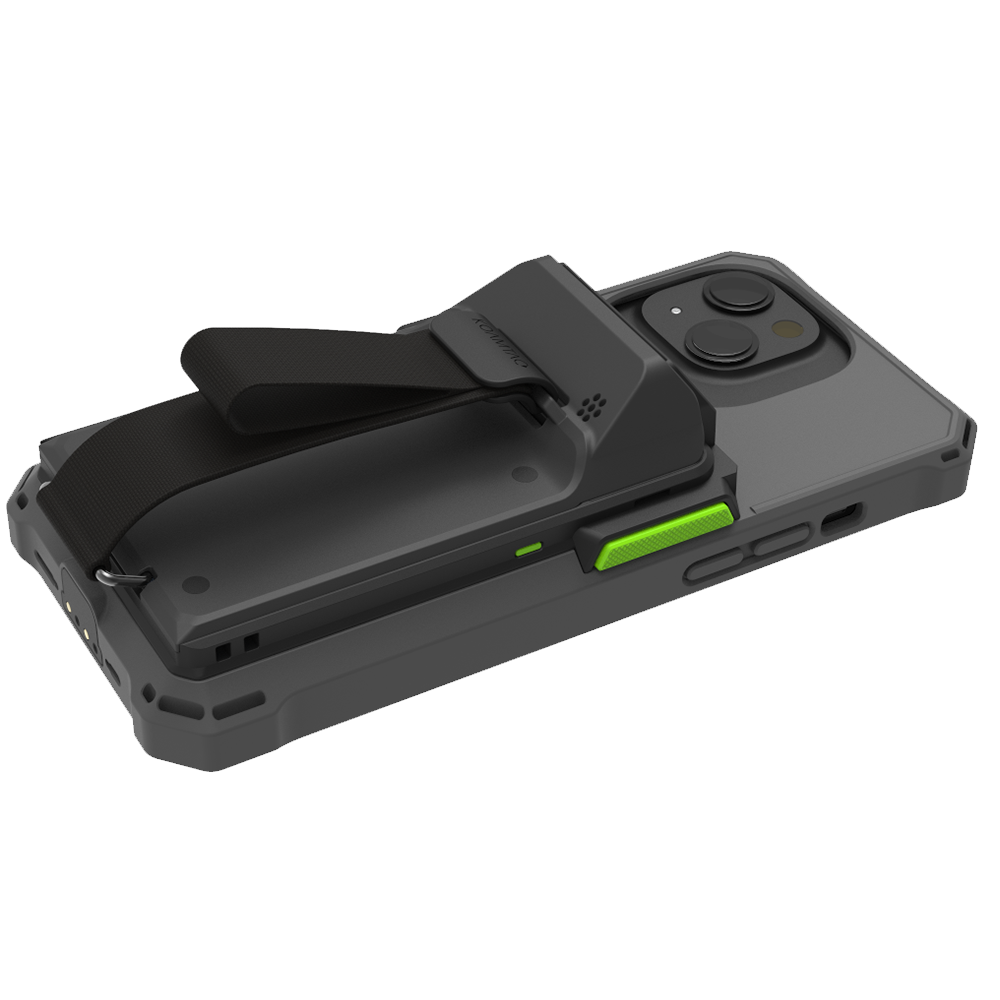

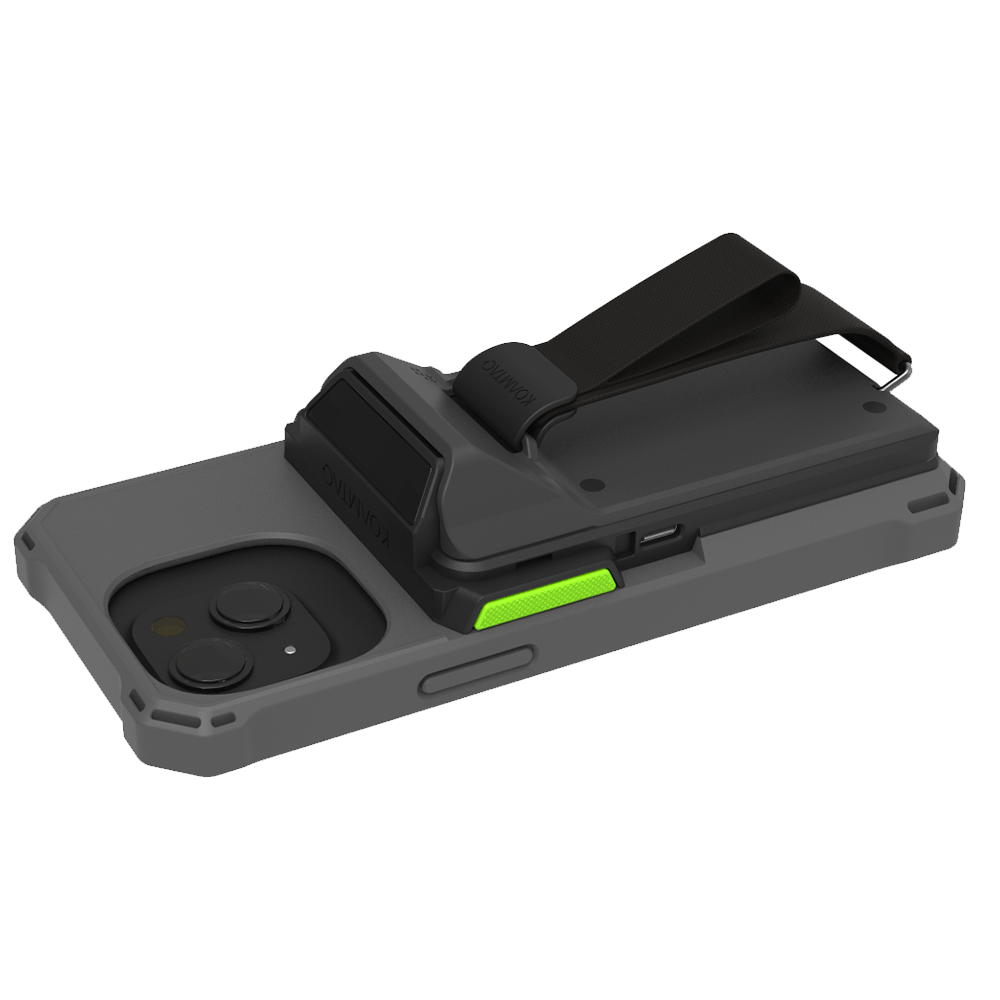

KDC1100 SmartSled for iPhone 16 Pro Max

SKU. 516780 EAN. 8800292722442

KDC1100 SmartSled for iPhone 16 Pro Max

$499

$499

Sale Coming Soon

KDC1100 SmartSled for iPhone 16 Pro Max

KDC1100 SmartSled for iPhone 16 Pro Max

KDC1100 SmartSled for iPhone 16 Pro Max

KDC1100 SmartSled for iPhone 16 Pro Max

KDC1100 SmartSled for iPhone 16 Pro Max

KDC1100 SmartSled for iPhone 16 Pro Max

Transform Your Smartphone into  a Rugged, High-Performance Barcode Scanner

Key Features

Size: 2.95″ x 4.28″ x 1.06″ (75 mm x 108.6 mm x 26.8 mm)
Connects via Lightning, USB-C, and Bluetooth 5.0
Compatible with Android, iOS, macOS, and Windows
Scan Type: 1D/2D, Postal Codes, OCR/MRZ
IP65 Dust/Water-resistant, 5ft drop-tested, -20°C to 50°C, up to 95% humidity
Charging via USB-C or Pogo Pin charging cradle

Scan Range by Model

Standard (ST): 1.9″ to 29.1″ (49 mm to 740 mm)
Professional (PRO): 1.38″ to 31.5″ (35 mm to 800 mm)
Medium Range (MR): 3.3″ to 59.0″ (85 mm to 1500 mm)
Extended Range (ER): 3.4″ to 112.1″ (88 mm to 2848 mm)

In the Box

SmartSled Custom Case
SmartSled Scanner

View full details

Features

Maximum Compatibility

Connects via Lightning, USB-C, or Bluetooth 5.0 to iPhone (13–16 series), Galaxy A35, XCover7, and other supported devices.
Bluetooth Modes: HID (Android/iOS/Windows), SPP (Optional Secure Mode)
Fully compatible with Android, iOS, macOS, and Windows.
USB Interfaces: USB (Android/iOS), Lightning (iOS)
Supports USB Power Delivery v3.0 for fast, reliable charging.

Symbologies Supported

1D: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, TCL39, Telepen, TriOptic, UPC-A, UPC-E0, UPC-E1
2D: Aztec Code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code
Postal Codes: POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post
OCR/MRZ: OCR-A, OCR-B, MICR E13-B, SEMI

Flexible Scan Range

ST: 1.9–29.1” (49–740 mm)
PRO: 1.7–31.5” (44–800 mm)
MR: 3.3–59.0” (85–1500 mm)
ER: 3.4–112.1” (88–2848 mm)
Optional flat-angled scan engine available upon request.

Rugged & Reliable

IP Rating: IP65 (dust-tight & water-resistant), IP54 with 1.0W UHF Reader
Drop Tested: Survives drops from 5 ft (1.5 m)
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Humidity: 5% to 95% non-condensing
Physical Size: 2.95" x 4.28" x 0.81" (75 mm x 108.6 mm x 20.7 mm)

Battery & Charging

Supports 2,000mAh Extended Battery and 6,000mAh Pistol Grip Battery
Charging via USB-C or Pogo Pin charging cradle

Companion Modules

0.5W / 1.0W UHF Reader: Nominal Read Range: 1.5 m (5') for 0.5W, 6 m (20') for 1.0W
HF/NFC Reader
Extended Batteries
Pistol Grip with optional 6,000mAh battery
1/2/5/10-Slot Charging Cradles, Car & Forklift Cradles

Integration & SDK

Keyboard wedging and synchronization
Transfer to applications, add-on prefixes/suffixes, barcode option selection
SDK support for Android, Xamarin, Cordova, React Native, Flutter, and Web
Dedicated technical support ensures reliable data collection

Compliance & Safety

Compliant with R&TTE, RED, FCC, KC, J-MIC, VCCI, SRRC, RoHS
Laser safe: IEC60825-1:2007 & IEC60825-1:2014, Class II

Warranty & Support

1-year limited warranty with dedicated customer support and RMA services
