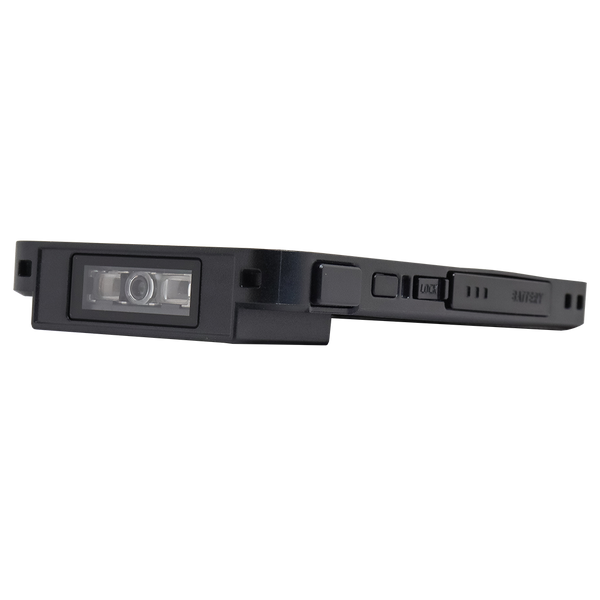

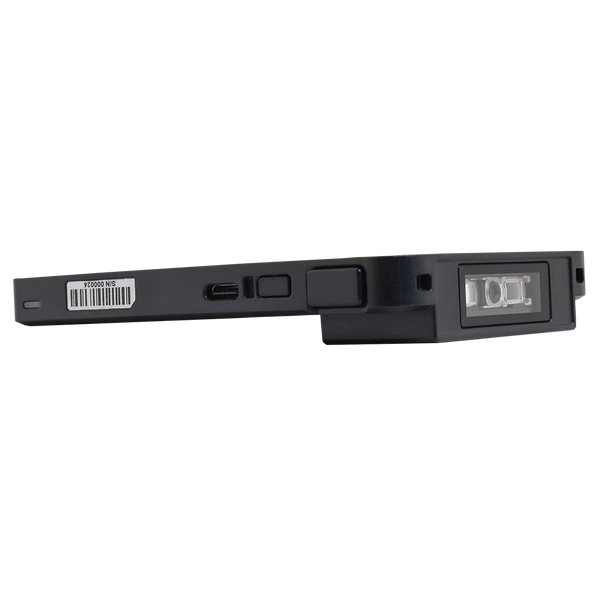

KDC480C 2D Imager Bluetooth Barcode Sled Scanner

SKU. 344300+361800 EAN. 8809697773868+8809355876115

KDC480C 2D Imager Bluetooth Barcode Sled Scanner

$502
$502
Sale Coming Soon
KDC480C 2D Imager Bluetooth Barcode Sled Scanner
KDC480C 2D Imager Bluetooth Barcode Sled Scanner
KDC480C 2D Imager Bluetooth Barcode Sled Scanner
KDC480C 2D Imager Bluetooth Barcode Sled Scanner

Bluetooth Low Energy 2D Imager Barcode Sled Scanner for Mobile Data Collection

Key Features
  • 2D imager barcode sled scanner for smartphones and tablets
  • Bluetooth® Low Energy (BLE 5.0) connectivity
  • IP65-rated and 5 ft (1.5 m) drop specification
  • Supports simultaneous charging of scanner and smartphone
  • 8MB internal flash memory for on-device data storage
  • Supports all major 1D & 2D barcodes
  • Includes FREE KTSync® keyboard wedging software and FREE SDK
In the Box
  • KD480C SmartSled Scanner

* SmartSled Case sold separately.

View full details

Features

Maximum Compatibility
Maximum Compatibility
  • Designed for use with various smartphones and tablets
  • User-friendly sled design allows smartphone upgrades while retaining the scanner
  • Compatible with integrated SmartSled charging cases
Symbologies Supported
Symbologies Supported
  • Supports all major 1D barcodes
  • Supports all major 2D barcodes
Flexible Scan Range
Flexible Scan Range
  • 2D imager scan engine enables reliable barcode capture
  • Suitable for diverse mobile Auto-Identification applications
Rugged & Reliable
Rugged & Reliable
  • Ingress Protection Rating : IP65
  • Drop Spec : 5′ (1.5 m)
  • Operating : -4˚F to 122˚F (-20˚C to 50˚C)
  • Storage : -4˚F to 140˚F (-20˚C to 60˚C)
  • Humidity : 5% to 95% (non-condensing)
Battery & Charging
Battery & Charging
  • Battery : Lithium-ion (3.7V DC, 1100 mAh)
  • Charging : USB, Charging Cradle
Integration & SDK
Integration & SDK
  • Bluetooth® Low Energy 5.0
  • Supported Bluetooth profiles: HID (Android / iOS / Windows), SPP (Optional Secure Mode)
  • Includes KTSync® keyboard wedging software
  • Includes FREE SDK
  • SDK support for Android, BlackBerry, iOS (iPhone, iPod touch, iPad), and Windows
Compliance & Safety
Compliance & Safety
  • R&TTE, RED, FCC, KC, J-MIC, VCCI, SRRC, RoHS Compliant
  • Laser Safety : IEC60825/CDRH Class II
  • LED Safety : IEC62471:2006
Warranty & Support
Warranty & Support
  • 1-year limited warranty with dedicated customer support and RMA services
